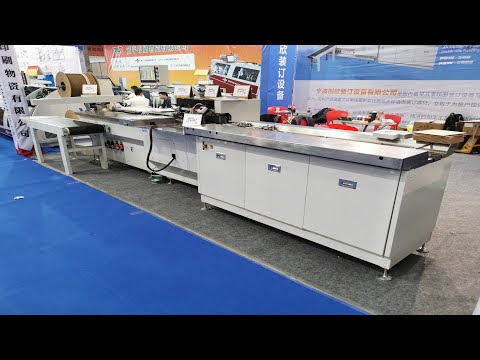

Automatic calendar wire o binding machine PBW580s

Description:

PBW580s machine is automatic wire binding and punching inline , include notebook and desk calendar feed conveyor device. Be more advanced than

Technical data:

(If close feed conveyor device)

Do big size calendar ,no use feed conveyor part

speed	Up to 1000 per hour
Air pressure	5-8 kgf
Wire o diameter	1/4-3/4
Max size of paper	580mm x 720mm
Min size of paper	65mm x 85mm (need optional special parts)
Max punch thickness	5 times total 15mm
Electric power	3ph 380
Max punch edge size	580mm
Max bind edge size	580mm

If Turn on feed conveyor device function

do notebook and desk calendar

speed	Up to 1500 per hour
Air pressure	5-8 kgf
Wire o diameter	1/4-3/4
Max size of paper	580mm x 420mm
Min size of paper	65mm x 85mm
Max punch thickness	5 times total 15mm
Electric power	3ph 380
Max punch edge size	580mm
Max bind edge size	580mm

Application:

Notebook, desk calendar , calendar wire binding and hole punching

Notebook area : (same size and differ size )

Have two operate situation, notebook with same bind edge like below picture



Notebook with differ size (cover bigger than inner paper),like below picture







Calendar area:
